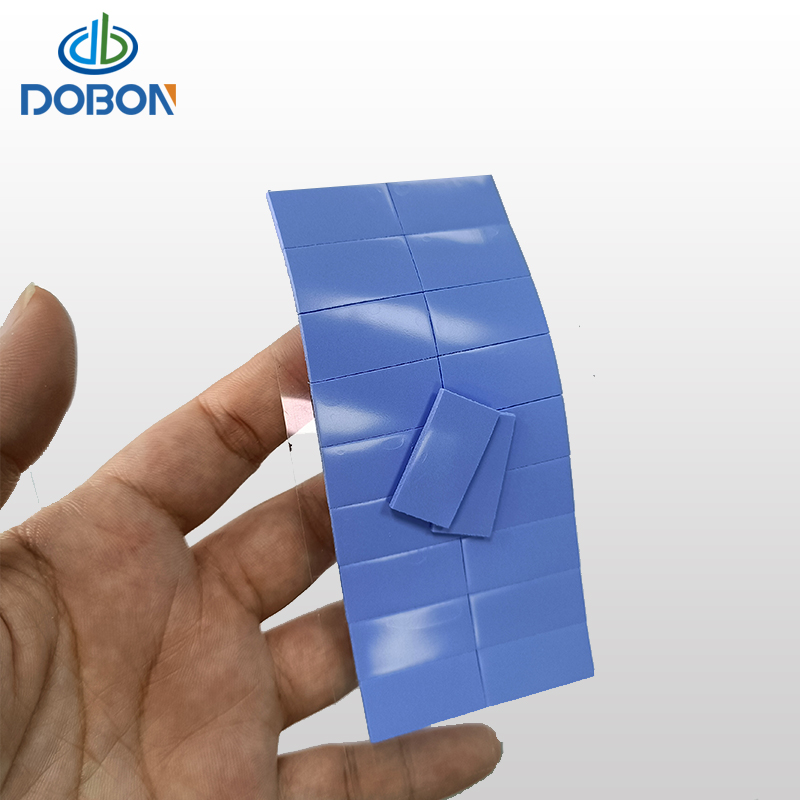

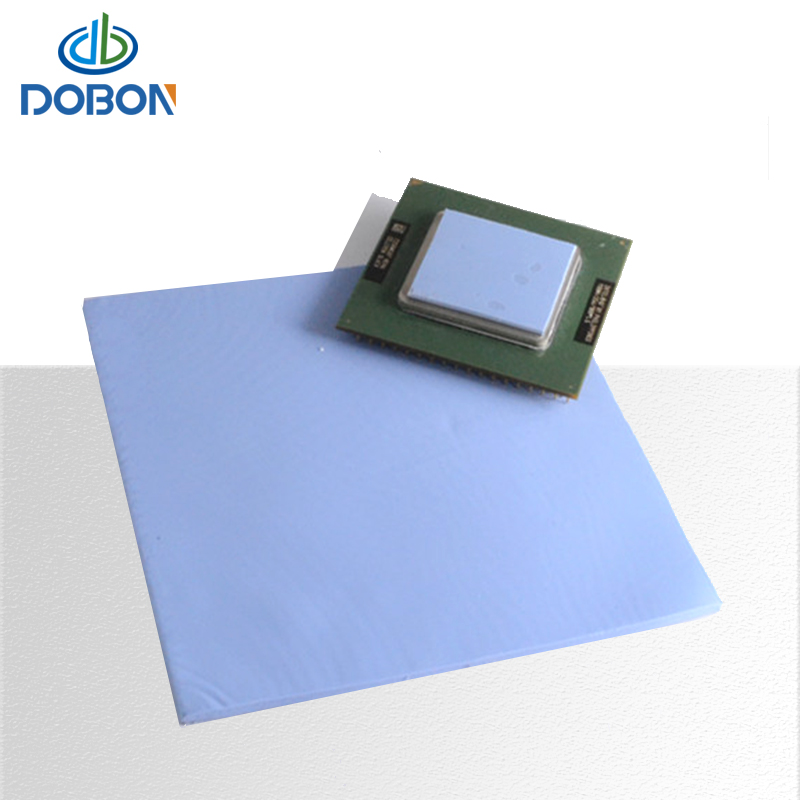

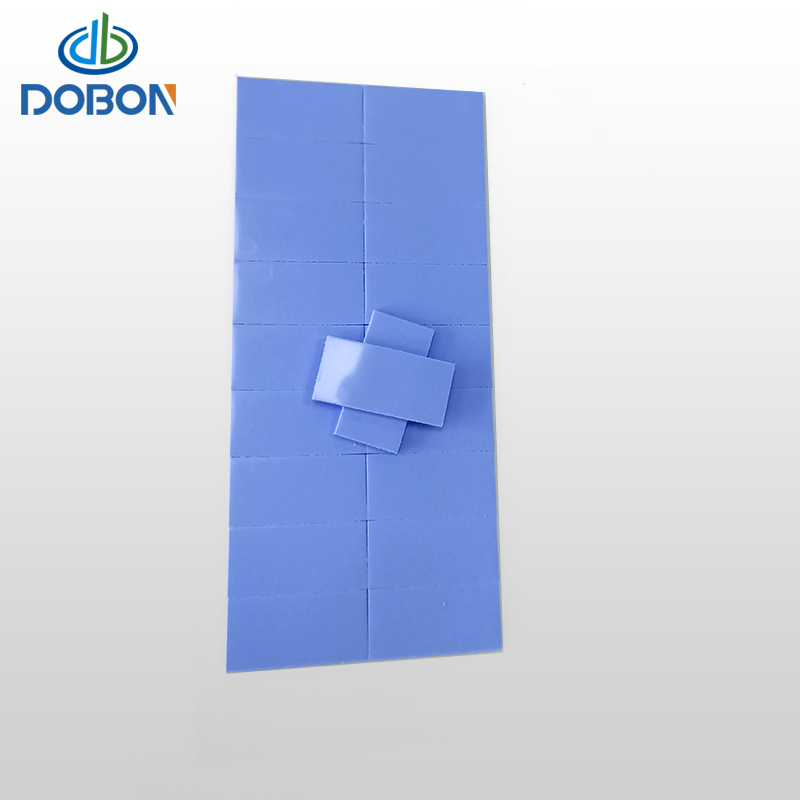

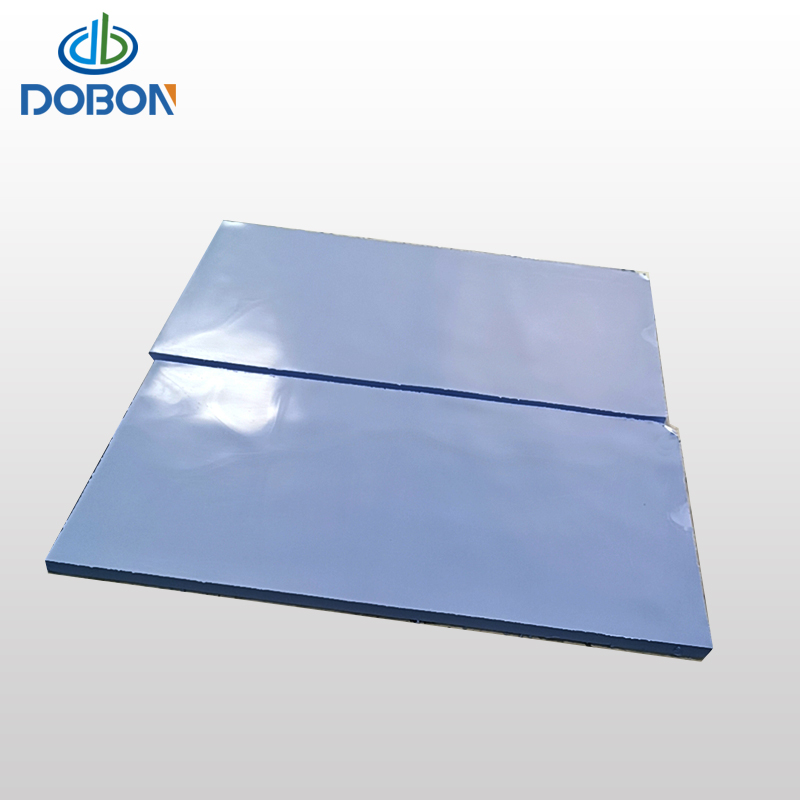

CP200 2W Thermal silicone pad

Thermal Conductive Pad/Cooling Soft Gap Pad
◇2 W/mk thermal conductivity
◇Low-cost thermal design solution
◇Natural viscosity, clean surface, can be repeatedly disassembled and used
◇High thermal conductivity, good insulation
◇The same heat sink can be used for heating devices with different heights
◇Adjustable color and hardness
Send Request Now

Table of technical parameters

Test item

Unit

CP100

CP200

CP300

CP400

CP500

CP600

CP700

CP800

CP900

CP1000

CP1200

CP1500

Color


Light gray

Light blue

Blue/dark grey

Green

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Dark gray

Thickness

Mm

0.15~18

0.15~18

0.3~8

0.3-5

0.5-5

0.5-5

0.5~5

0.5~5

0.5~5

0.5~5

0.8~5

0.8~5

Specific gravity

g/cm3

1.8±0.1

2.4±0.1

2.9±0.1

3.2±0.1

3.3±0.1

3.4±0.1

3.4±0.5

3.5±0.1

3.6±0.1

3.7±0.1

3.8±0.1

3.9±0.1

Hardness

Shore C

20±5

25±5

30±5

30±5

35±5

35±5

35±5

35±5

35±5

35±5

35±5

35±5

Compression rate

%

40

30

25

25

25

25

25

25

25

20

20

20

Temperature resistance range

-40~150

-40~150

Volume resistance

Ω·m

1.2*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

1.0*1011

Withstand voltage

KV/mm

5

5

5

5

5

5

6

6

6

6

6

6

Flame retardant rating


V-0

V-0

Thermal conductivity

w/m-k

1

2

3

4

5

6

7

8

9

10

12

15



Choose Dobon Thermal Pad Materials
Configurations Available
Material Avalable Options
1-side / 2-side adhesive lamination
Standard Sheet and Roll Sizes
Sheet size:200 x 400mm, 350x350mm
Individual parts available Roll Form available
How to guarantee the quality of Thermal Pad?

1

Professional engineers will review the order, conduct process evaluation and program production.

2

Thermally conductive silicone sheets have excellent high thermal conductivity and ease of use.

3

providing unparalleled thermal conductivity in interface gap filling materials

4

Provide effective solutions for different applications

5

Fixture production and functional testing

6

Fastest delivery time of 3-5 days

Typical Applications Include
LED lighting
Backlight module
Switching power supply
Medical equipment
Communication equipment
Mobile device
Video equipment
Network products
Household appliances
PC Server/Workstation
Optical drive/COMBO
Base station
Why choose Dobon?
1 China factory Directly, no middleman, with more than 200 employees
2 Sophisticated production equipment such as placement machine, high-temperature furnace, AOI, SPI, X-Ray, etc.
3 Intelligent quality control system, strict quality control
4 One-stop service, single manufacturing team, 100% privacy
We are a manufacturer with 15 years of experience in Thermal Interface Materials, which guarantees that you will get the best quotation and the best quality products.

Click the message box on the right to contact us now to get your custom Thermal pad materials quotation.
What do we need in order to give you a quick quote?
Materials Type
Thermal pad, Thermal Grease, Thermal Insulator,Thermal Tape, Thermal conductive gel,Thermal Graphite Sheets,Thermal clay,Thermal Putty etc.
Materials Size
Length, Width, Thickness, Hardness, Color, Thermal Conductivity, Quantity etc
Certification

Has passed ISO: 9001 quality certification to ensure that our products meet industry standards,
At Dobon, insists on excelsior quality policy, has established environmental assessment lab, analysis gauging lab, reliability testing lab,safety codex lab,all these meet SGS,CTI testing level, with infrared spectrum, thermal conductivity measuring instrument,DSC,DTG to make quantitative component analysis, as the adequate technical support in manufacture.

Dobon focuses on providing full range Of Thermal Interface Materials for small and medium-sized enterprises.
For more detailed thermal pad knowledge and other thermal transfer materials related knowledge, please click here

To make the industry more efficient, come to Dobon for free sample test.

Dobon firmly believes that quality is the soul of products, and strictly abides by every standard, every process of production, and every detail of service!
